Triflex 2 Anti Vibration Mounts

SKU:
GM10002203
OE Part No:
Article No:
100022

Triflex 2 Mount

SGD 180.00 (tax excl.)
Description

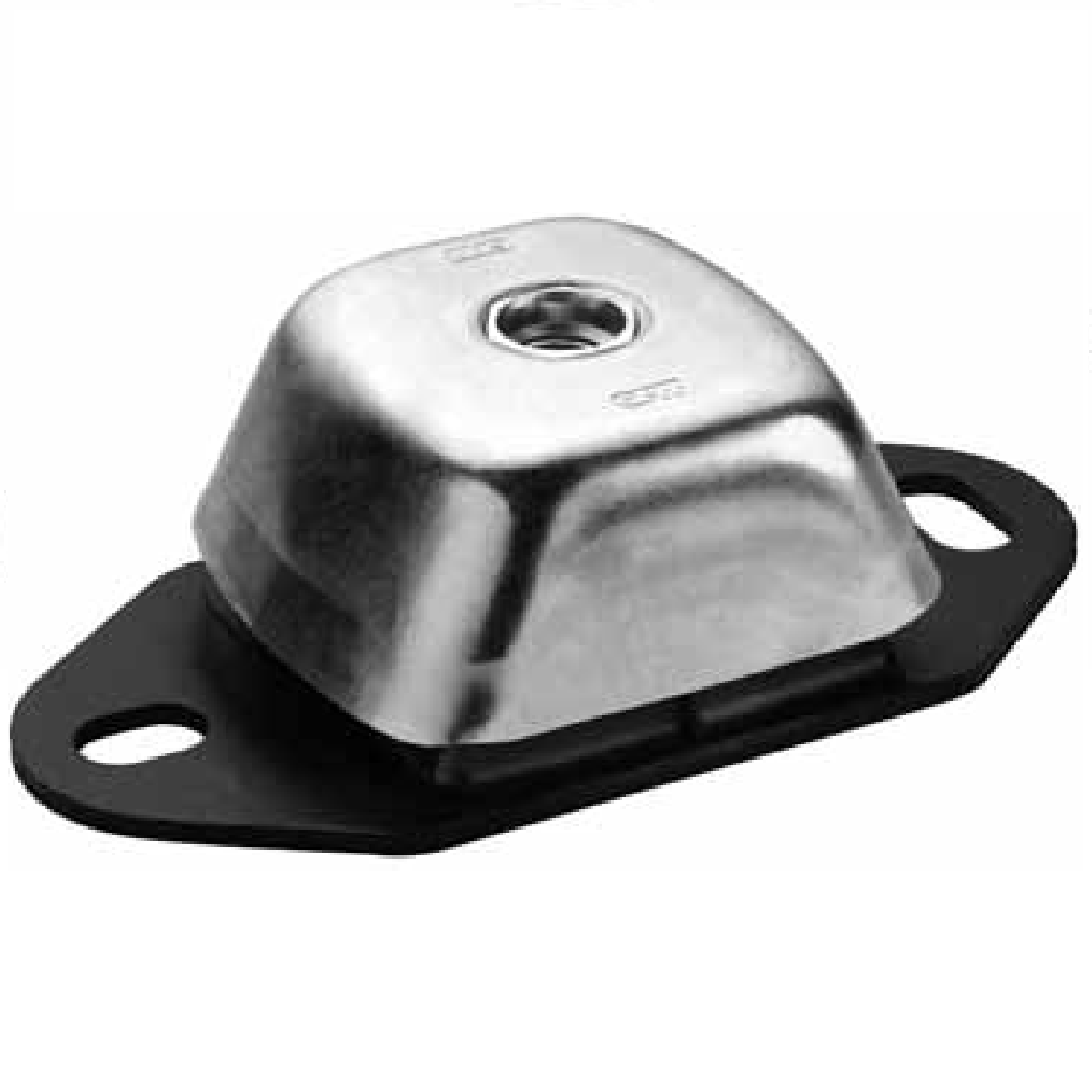

The GMT TRIFLEX 2  Mount was developed for the insulation of static and mobile machines and engines. The compact bearing is easy to install and allows control of vibrations in three directions. The special design of TRIFLEX guarantees different degrees of stiffness in the three main axes, high spring deflection, carrying power and a long-lasting mount.

Product Details
GM10002203

Data sheet

Article No
100022
Shore Hardness
65 sHA

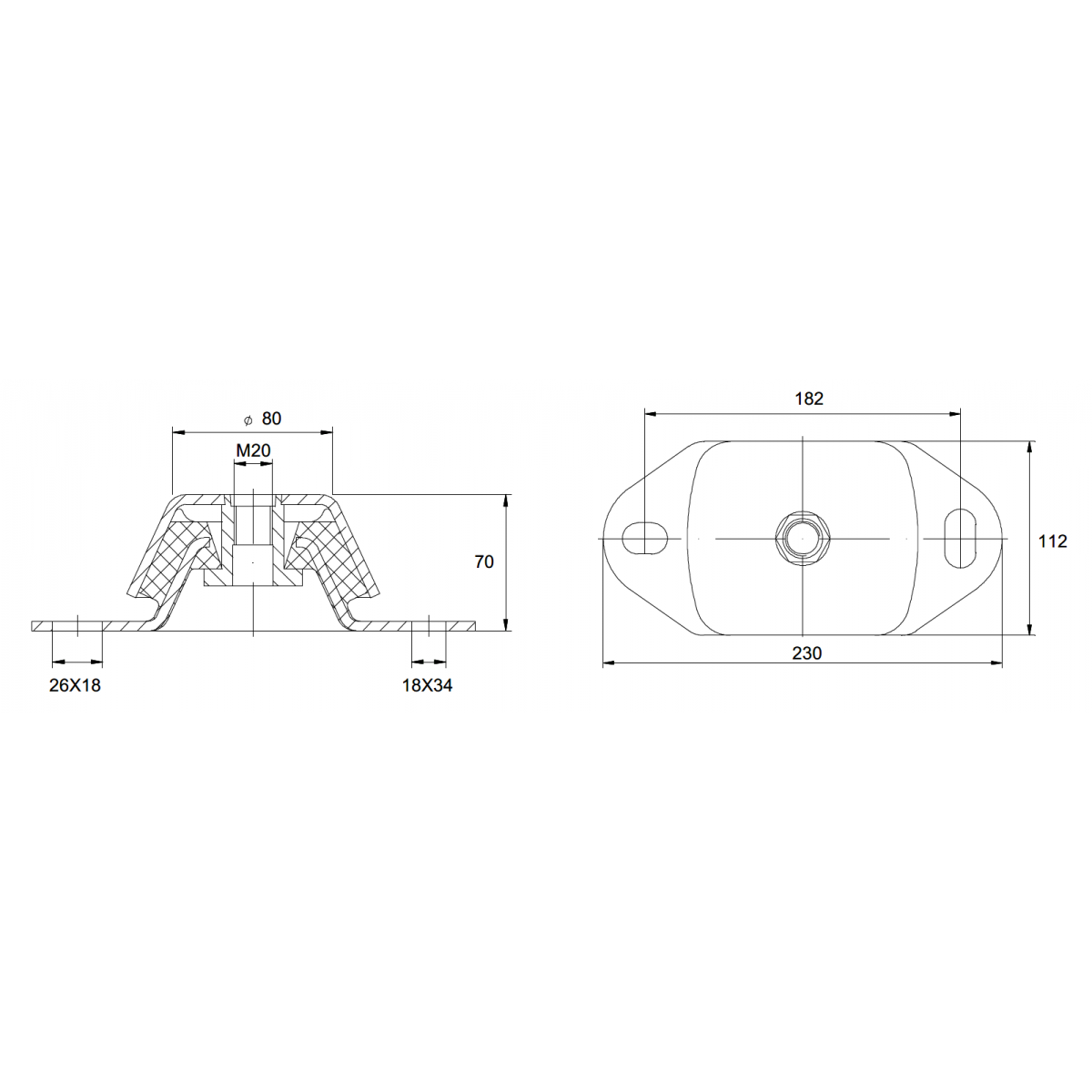

Overall Length
230 mm
Overall Width
112 mm
Overall Height
70 mm
Hole Position
182 mm
Hole Size
18.0 mm
Threaded Bolt
M20
Load Fv
16 kN
Weight
2.4 kg
Cross Reference
TRIFLEX-MTG1088
