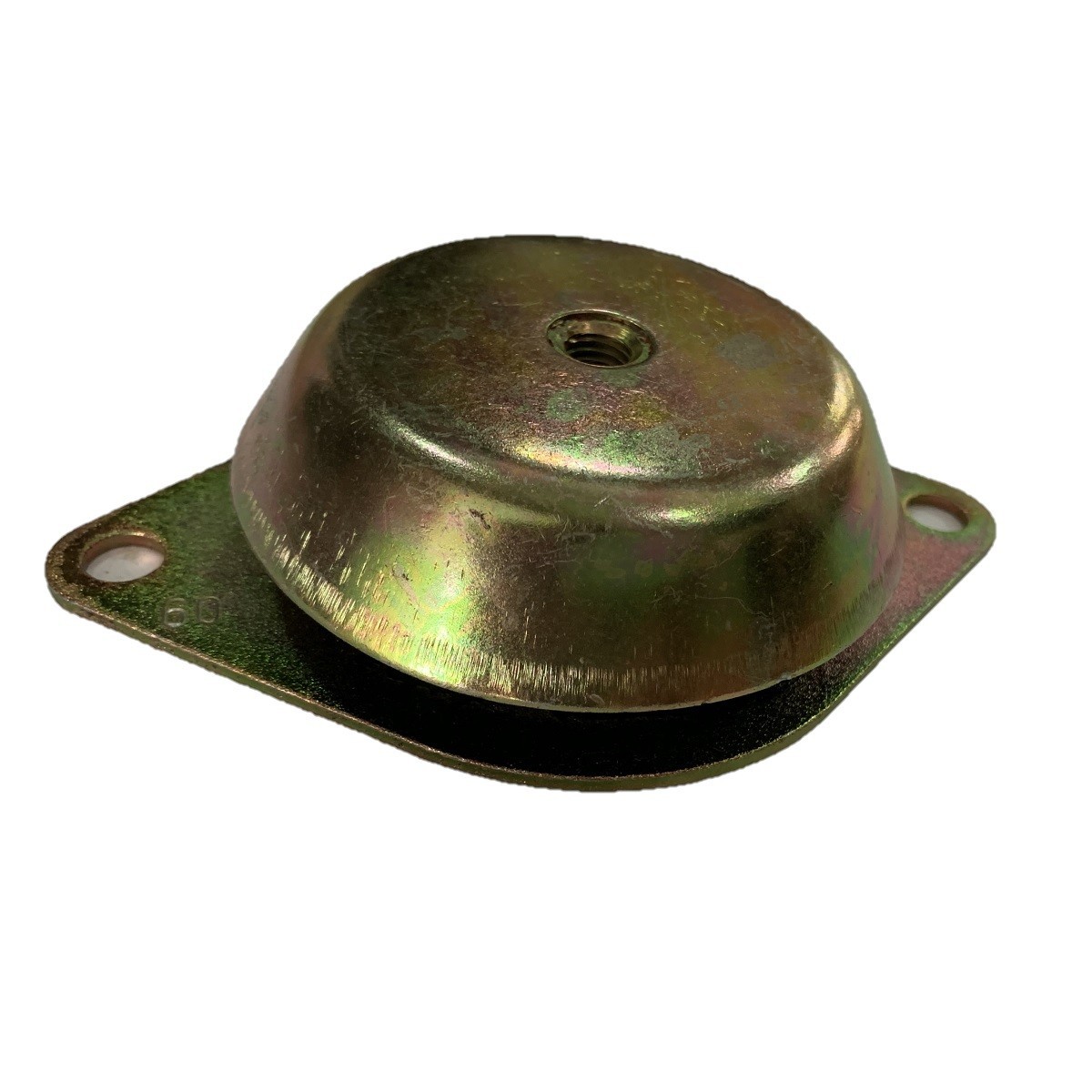

Machine Mount Fail Safe Type

SKU:
GM10400302
OE Part No:
Article No:
104003

Machine Mount Fail Safe

SGD 60.00 (tax excl.)
Description

Machine feet are the preferred choice when it comes to the vibration and sound insulated bedding for engines, blasts, tool machine, printing and textile machinery. They have a favorable thrust-spring-constant/pressure-spring-constant ratio. Because of the higher degree of horizontal stiffness their mechanical movements can be largely compensated.  All these products are maintenance-free. The manufacturing of these machine feet is done on the basis of natural rubber.

Product Details
GM10400302

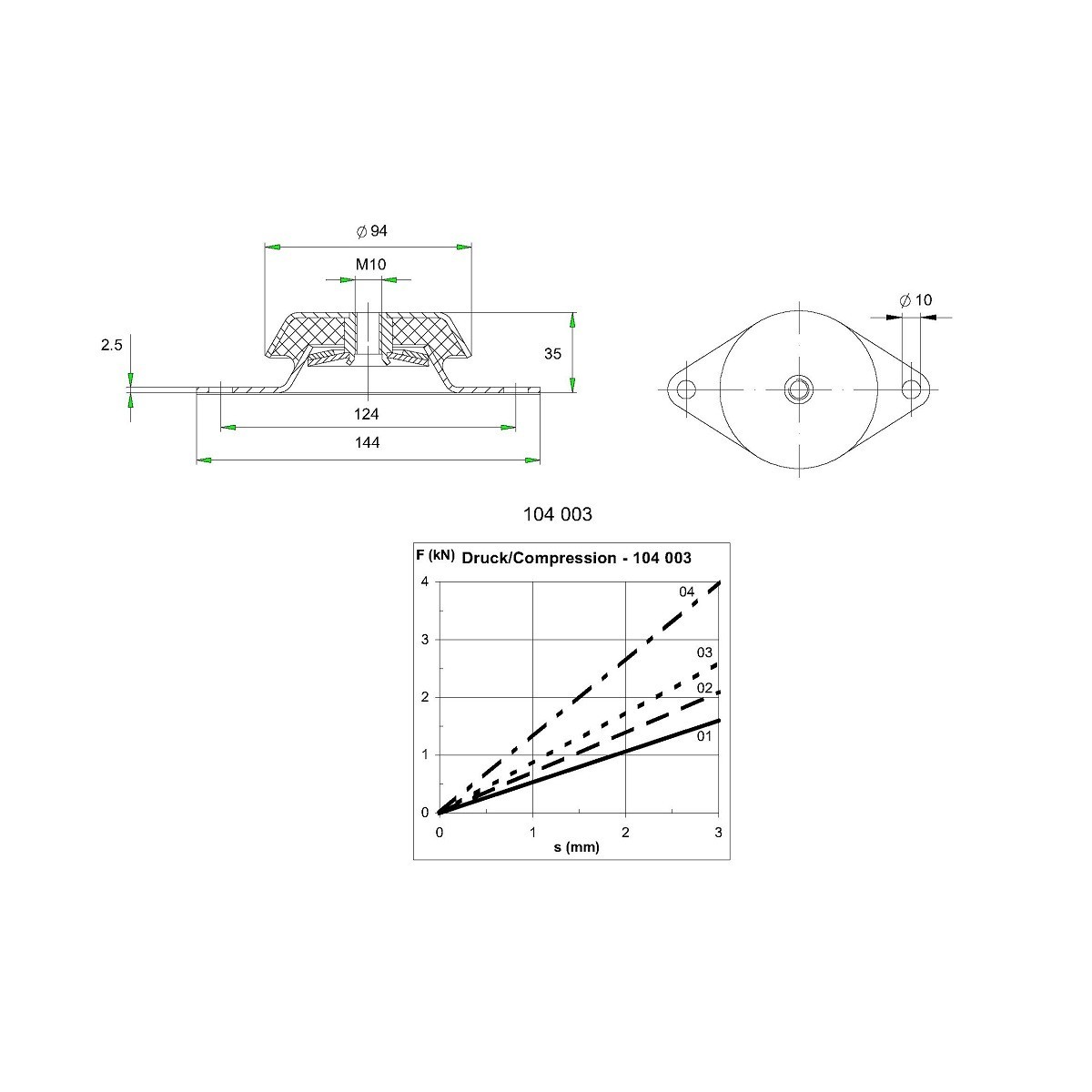

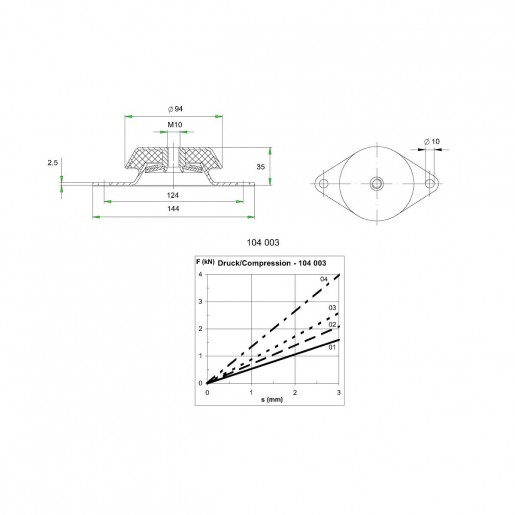

Data sheet

Article No
104003
Shore Hardness
60 sHA
Overall Length
144 mm
Overall Width
94 mm
Overall Height
35 mm
Hole Position
124 mm
Hole Size
10.0 mm
Threaded Bolt
M10
Load Fv
2.6 kN
Weight
0.5 kg
Cross Reference
M/C-MF1902
