Machine Mount

SKU:
GM10000402
OE Part No:
Article No:
100004

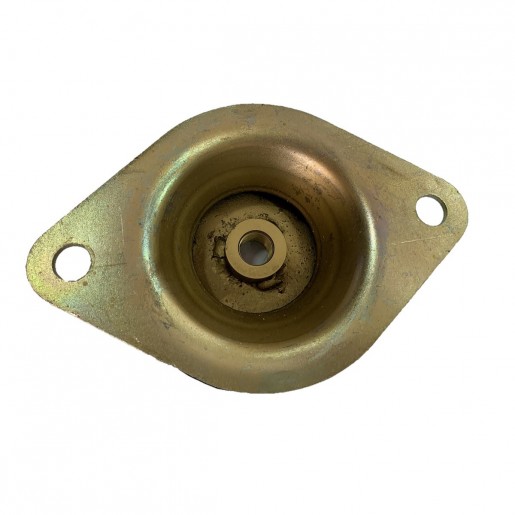

Machine Mount

SGD 0.00 (tax excl.)
OUT OF STOCK
Notify me when available
Description

Machine feet are the preferred choice when it comes to the vibration and sound insulated bedding for engines, blasts, tool machine, printing and textile machinery. They have a favorable thrust-spring-constant/pressure-spring-constant ratio. Because of the higher degree of horizontal stiffness their mechanical movements can be largely compensated.  All these products are maintenance-free. The manufacturing of these machine feet is done on the basis of natural rubber.

Product Details
GM10000402

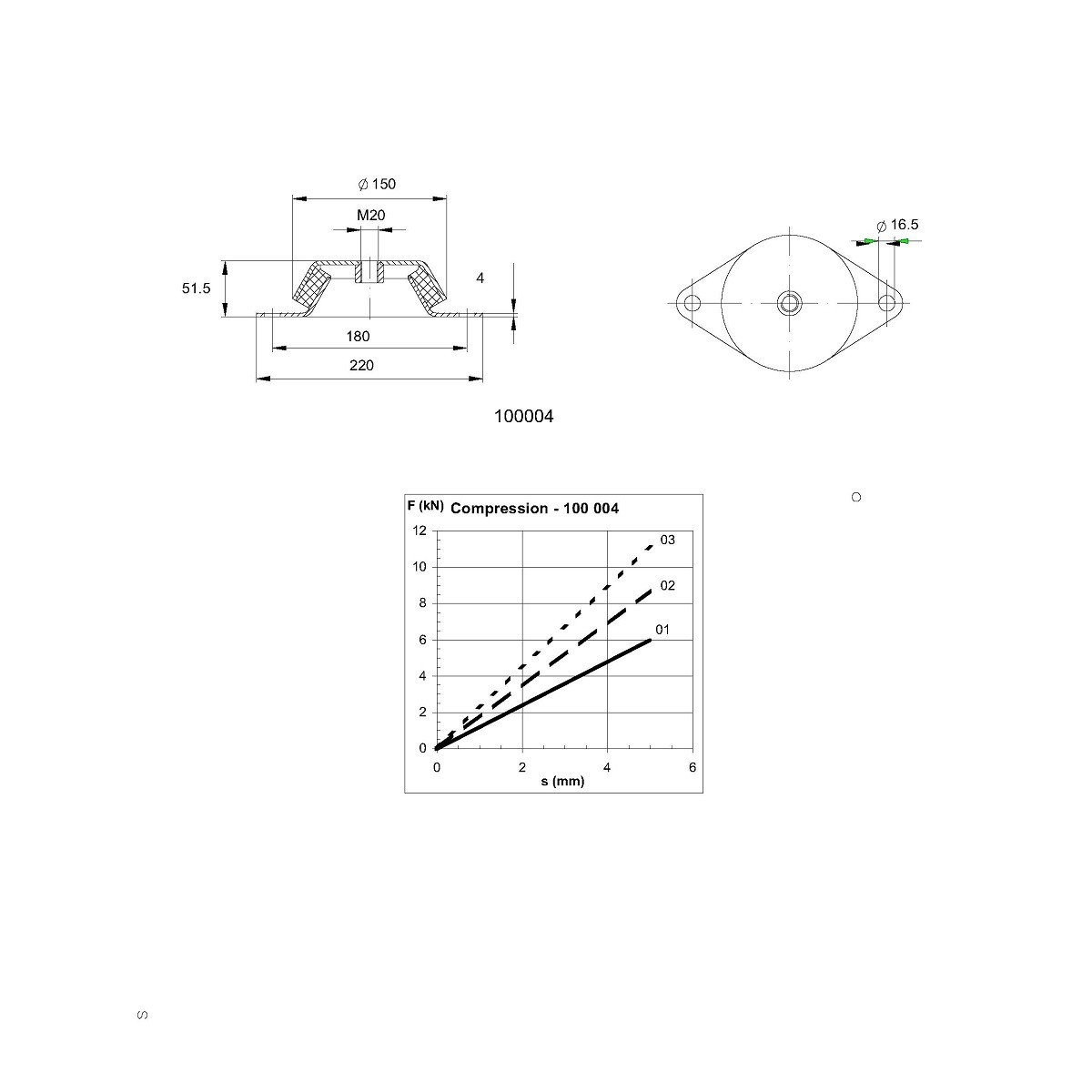

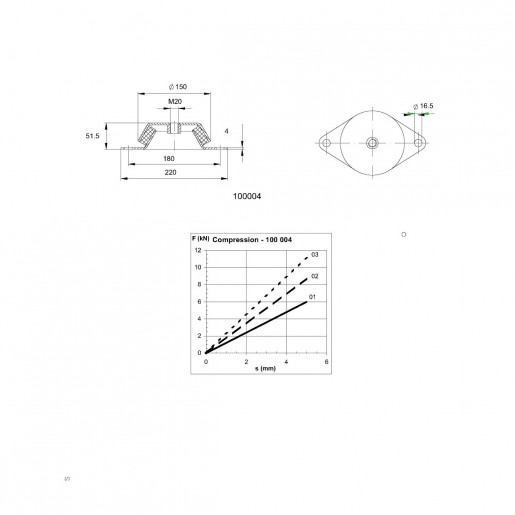

Data sheet

Article No
100004
Shore Hardness
60 sHA
Overall Length
220 mm
Overall Width
150 mm
Overall Height
51.5 mm
Hole Position
180 mm
Hole Size
16.5 mm
Threaded Bolt
M20
Load Fv
5 kN
Weight
1.7 kg
Cross Reference
M/C-MF1892
