192 D/150/50/5 Heavy Duty Fixed with Pevopur Wheel
192 D/150/50/5 Heavy Duty Fixed with Pevopur Wheel
192 D/150/50/5 Heavy Duty Fixed with Pevopur Wheel
192 D/150/50/5 Heavy Duty Fixed with Pevopur Wheel
Raeder-Vogel

192 D/150/50/5 Heavy Duty Fixed with Pevopur Wheel

SKU:
RV6233003000
OE Part No:
-
Article No:
6233003000

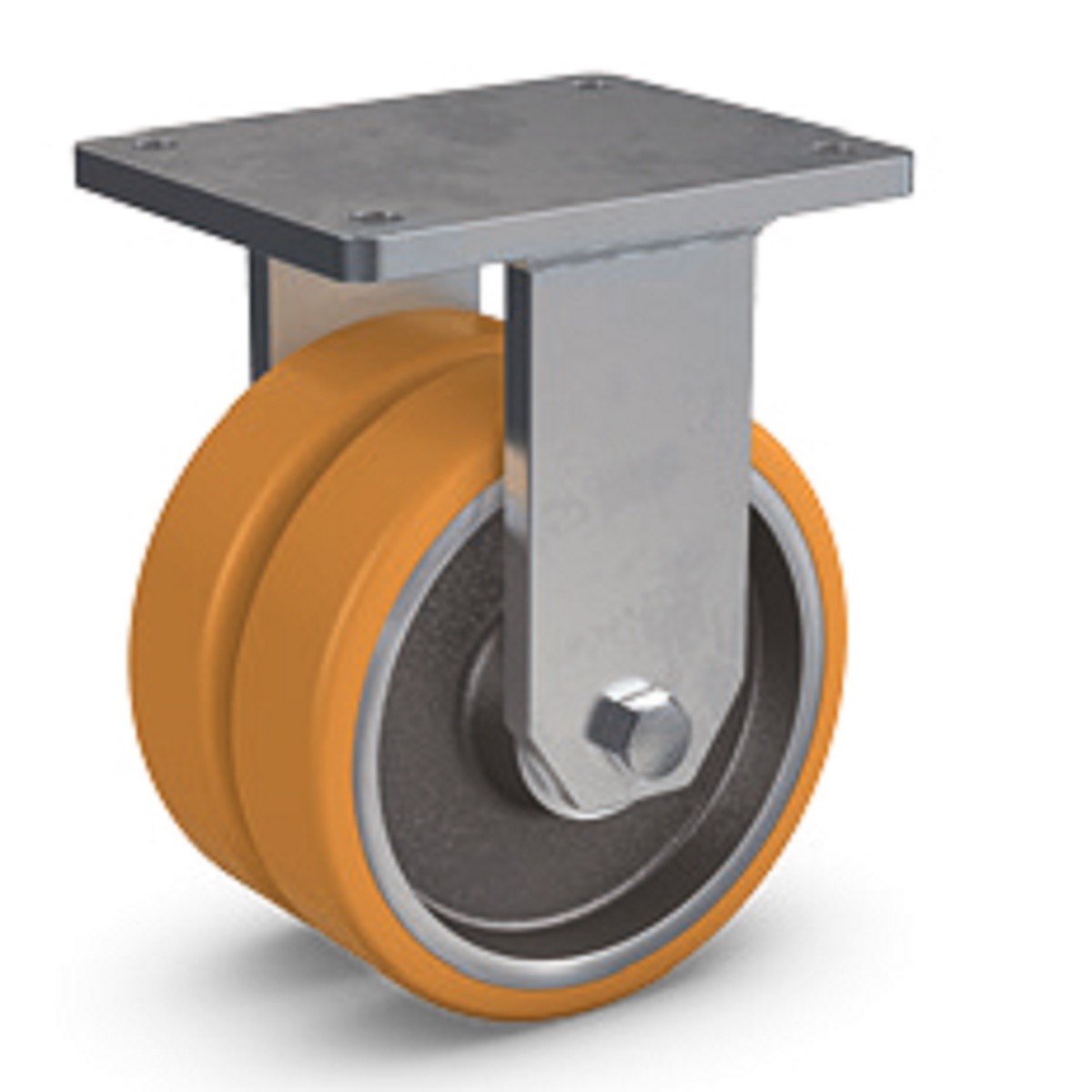

Heavy duty twin wheel fixed castor with Pevopur wheel

SGD 151.00 (tax excl.)
Last items in stock 2 Items
Add to wishlist
Description

Heavy duty twin wheel fixed castor with 178 Series Pevopur polyurethane tread material, bonded to grey cast iron rim which are fitted in highly stable welded steel bracket. It has a high-quality thrust ball bearing and a tapered roller bearing for accurate guidance of the kingpin. The tread is non-marking, with excellent resistance to abrasion and impact and is highly resistant to oils and greases.

Product Details
RV6233003000

Data sheet

Article No
6233003000
Type of Castors
Fixed
Load Capacity
1350 kg
Wheel Diameter
150 mm
Tread Width
50 mm
No. of Bore Holes
4
Bore Hole Diameter
15.0 mm
Tread
Pevopur
Shore Hardness
93 sHA
Top Plate
200.0 x 160.0 mm
Bolt Holes Position
160.0 x 120.0 mm
Pivot Radius
-
Housing
Welded steel
Overall Height
210.0 mm
Weight
10.5 kg
Attachments
Heavy Duty Castors Catalog
Download (3.32M)
