191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel
Raeder-Vogel

191 F PD-S/250/60/5R Heavy Duty Swivel Castor with Pevodyn Soft Wheel

SKU:
RV6277005002
OE Part No:
-
Article No:
6277005002

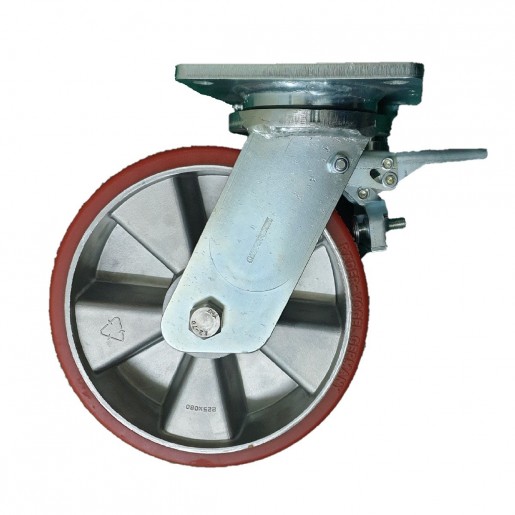

Heavy duty swivel castor with Pevodyn Soft wheel

SGD 400.00 (tax excl.)
Add to wishlist
Description

Heavy duty twin wheel fixed castor with 183 Series Pevodyn-Soft polyurethane tread material, bonded to alumiinium rim which are fitted in highly stable pressed steel bracket. It has a high-quality thrust ball bearing and a tapered roller bearing for accurate guidance of the kingpin. The tread is non-marking, with excellent damping and is highly resistant to oils and greases.

Product Details
RV6277005002

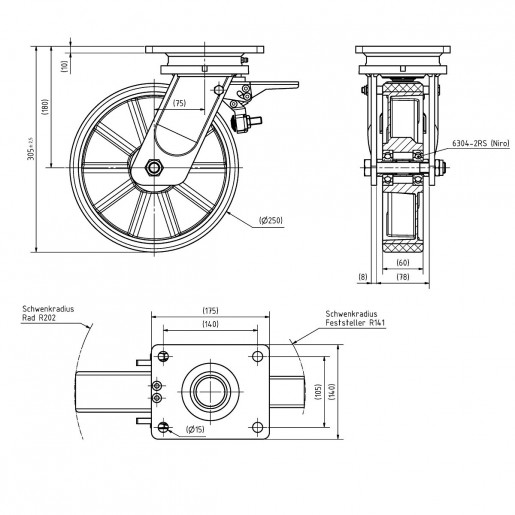

Data sheet

Article No
6277005002
Type of Castors
Swivel
Load Capacity
780 kg
Wheel Diameter
250 mm
Tread Width
60 mm
No. of Bore Holes
4
Bore Hole Diameter
13 mm
Tread
Pevodyn Soft
Shore Hardness
78 sHA
Top Plate
175.0 x 140.0 mm
Bolt Holes Position
140.0 x 105.0 mm
Pivot Radius
75.0 mm
Housing
Pressed Steel
Overall Height
305.0 mm
Weight
9.2 kg
Locking Device
All
Attachments
PevodynSoft Information
Download (618.73k)
